MARINE SERIES

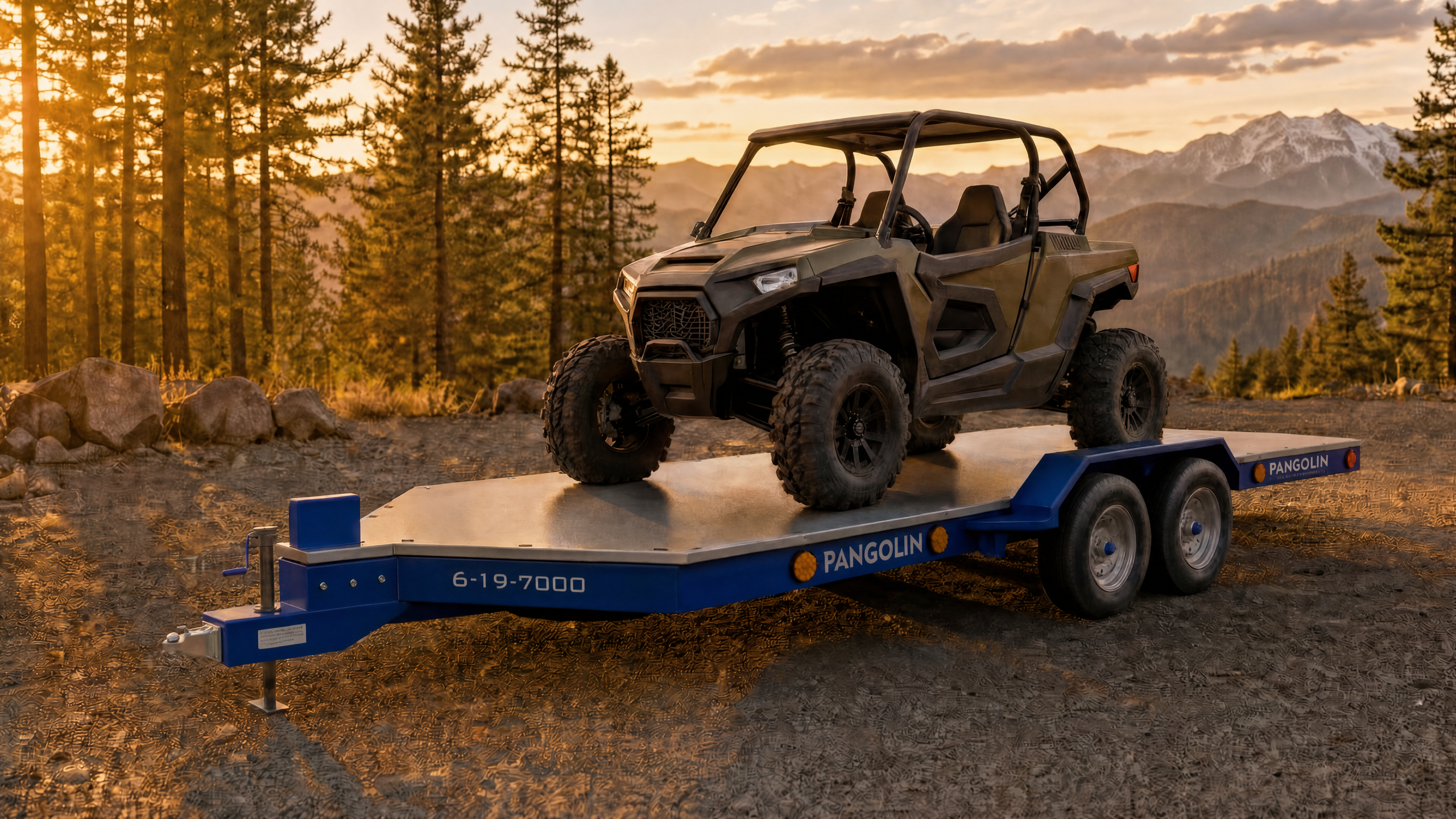

Lightweight composite utility trailer with Switch & Tow modular platform. Composite monocoque frame, pultruded rails, and sealed systems for lasting all-terrain performance.
Base configuration · Updates live below
MARINE
COMING SOON
FITS BOATS
7,000
CAPACITY
10 Year
WARRANTY
VIEW FULL SPECIFICATIONS ↓
DIMENSIONS
Length Overall
25'8"
width
102"
CAPACITY
GAWR
7,000
Axle Count
Tandem (2)
Axle Rating
3500
RUNNING GEAR
Wheels
16" x 8" Alum.
Tires
ST235/35 R16 G-Rated 12 Ply
Suspension
CFRP Ind. Trailing Arm
Fenders
300 lb. Cap
HULL SUPPORT
Bunks
Coupler
2" Std
Hitch
Ball Std
Winch
CONSTRUCTION
Frame
CFRP Unibody
Bearing Seals
BRAKING & SAFETY
Brake System
Elec. Over Hydraulic
Brakes
Stainless Disc
Lights
LED Watertight
Safety Lines
Dyneema
SYSTEMS
Wash Down Tank
Washdown Nozzles
Jack
Top wind
WARRANTY
Warranty
10 Year
CONFIGURATION
Pangolin prelaunch reservation
Reserve your production slot for free. No payment is due now, and no final pricing is being promised at this stage.
Final pricing will be confirmed before any deposit or preorder.
This saves your interest in this model. It does not lock final price, options, delivery timing, or deposit terms.
PATENTED TECHNOLOGY
Every component is designed for saltwater, sun, and years of heavy use. No rust. No rot.
01
A single monocoque structure replaces the traditional steel frame and wood deck. No joints to fatigue. No bolts to corrode. Engineered as one continuous composite shell for maximum rigidity and minimum weight.
U.S. Patent #16/944,389
02
Each wheel moves independently over road imperfections, reducing stress on the hull and delivering a smoother tow. Composite arms eliminate metal fatigue and rust.
U.S. Patent #11,865,961 B2
03
Fiberglass, carbon fiber, and Kevlar — combined using techniques perfected over 40 years in the yacht industry. Every component is engineered to withstand saltwater, UV exposure, and chemical contact without degradation.
10-Year Structural Warranty
Fiberglass
Unibody shell structure
Carbon Fiber
Frame & deck reinforcement
Kevlar
Impact-resistant layering
Stainless Steel
Brakes, hardware, fasteners
GALLERY
Photography, renders, and engineering details showing what makes Pangolin different.
DETAIL 01
The CFRP unibody frame is one continuous piece — no welds to crack, no joints to rust. Stronger than steel at half the weight, and engineered for decades of saltwater exposure.
DETAIL 02
Composite trailing arms move independently over road imperfections, protecting your hull and keeping every tow smooth. Zero metal fatigue, zero rust, zero compromise.
DETAIL 03
Stainless steel disc brakes, airtight bearing seals, and LED watertight lighting. Every component spec'd for the harshest marine environments.
Compare the lifetime cost of Terra 6-19-7000 versus conventional steel and aluminum trailers over time.
saved over 10 years by choosing Pangolin Terra
Select nearby models and compare price, fitment, construction, and key specs side by side.
